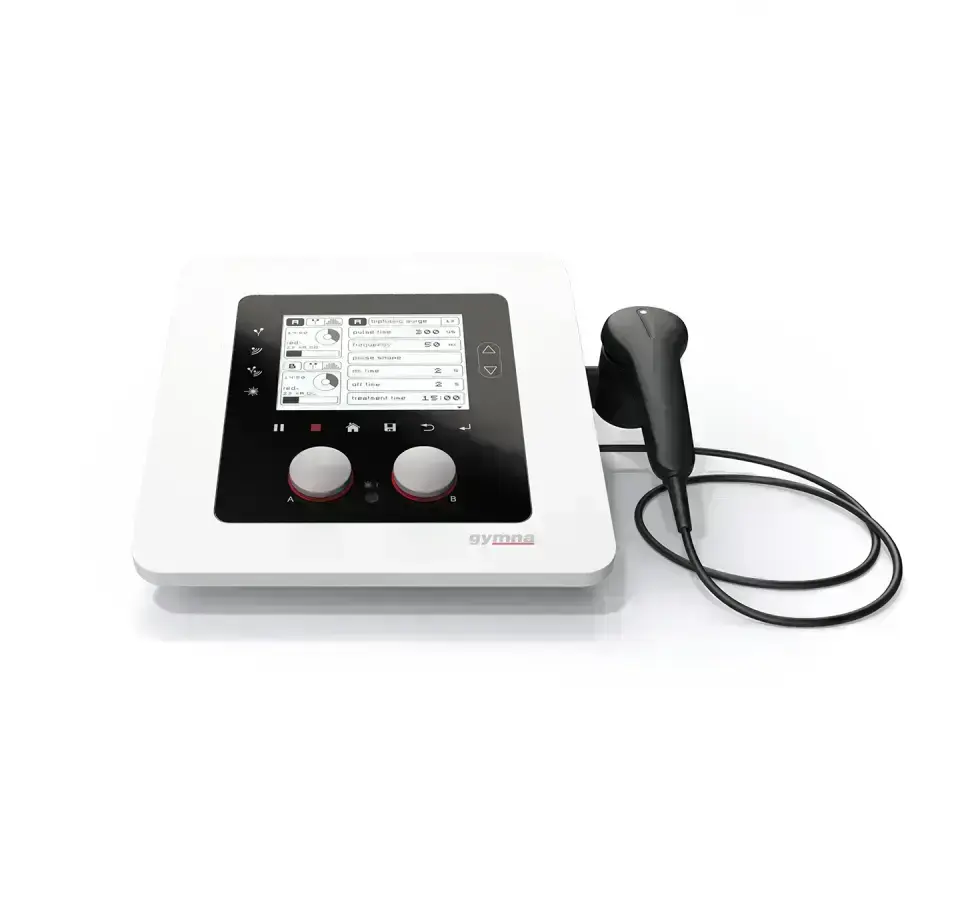

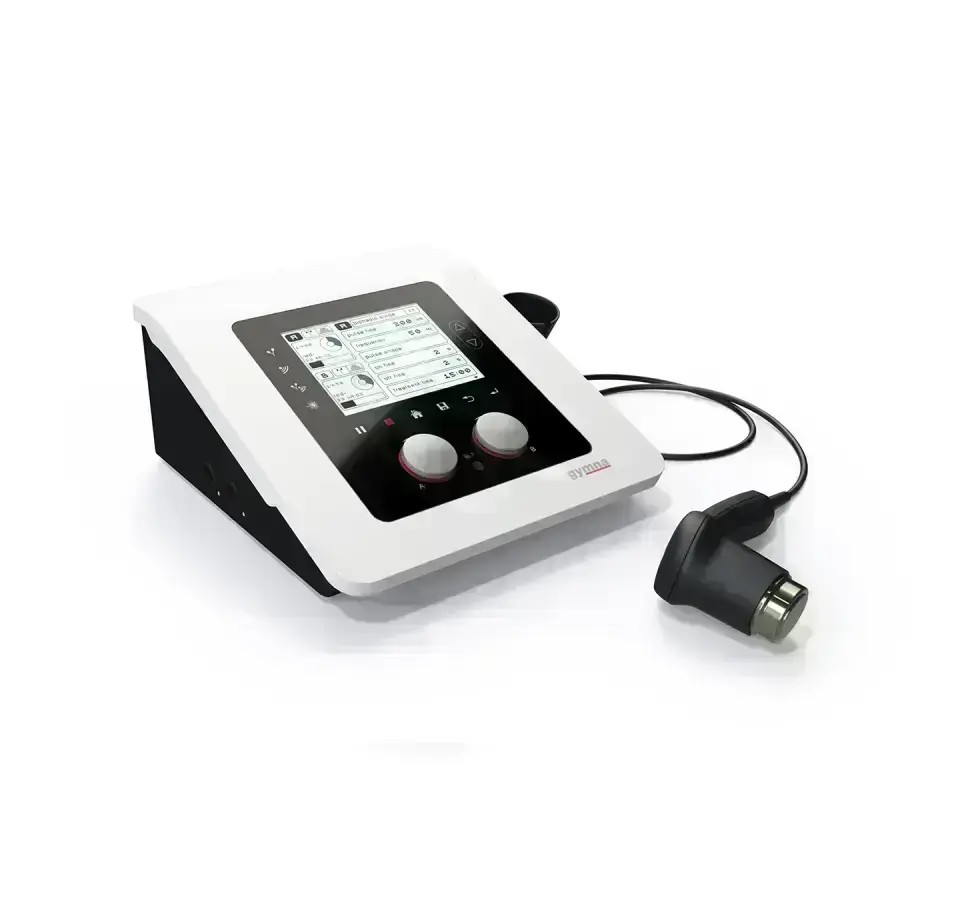

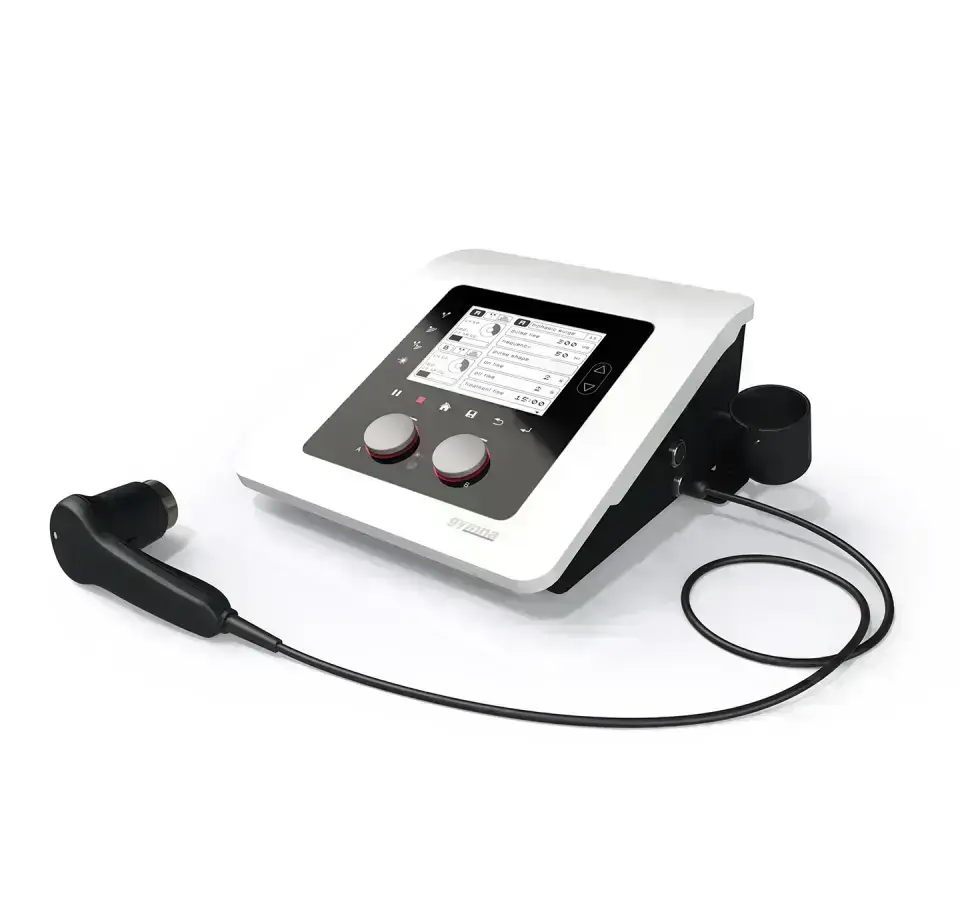

New modern state-of-the-art device that combines electrotherapy, ultrasound and combined therapy with touch screen and menu on Greek.

System philosophy:

Various possibilities of choosing the treatment through: Treatment Goal, Treatment Protocols, Program Number or Treatment Format.

The selection via 'Treatment Goal' or 'Treatment Protocol' offers an informed treatment proposal.

New touch screen (touch screen) with full display of all treatment parameters.
List of contraindications on the screen.

On-screen Treatment Guide including tips and photos for placement of electrodes and Ultrasound heads.

Software in Greek as well as in various languages, language selection from the device menu.

Electrotherapy:

2 fully independent electrotherapy channels with the possibility of applying two different programs.

Current forms: all types of currents (21 types). Galvanic, TENS, TENS-burst, Transpotential, Faradic, Biphasic symmetrical pulse, Russian pulse, Trabert, 2+4-Interfering, Vector, Electrodiagnosis, Iontophoresis.

350 treatment programs (ultrasound electrotherapy and combined therapy), 12 diagnostic programs, 30 free memories for new programs.
special programs for pelvic retraining, probes are optionally available,
various electrodiagnosis capabilities (I/t curve, rheobase, time value and adaptation factor),
multitude of treatment programs in sequences.

Possibility of connection with a suction device Vaco 200

Ultrasound therapy:

• continuous and pulsed emission, contact control, waterproof head 4cm², two frequencies 1 and 3 MHz.

Combined treatment:

• ultrasound, medium frequency currents and TENS.

Concomitant treatment:

• treatment of one condition with two types of currents through the two independent channels,
• treatment of two different diseases at the same time using two different forms of treatment (Electrotherapy – Ultrasound)

Technical characteristics of electrotherapy :

• intensity 0-80 mA for direct current and 0-120 mA for alternating current.

Technical characteristics of ultrasound:

• ultrasound intensity: 0-2 W/cm² in continuous emission and 0-3 W/cm² in pulsed emission.
• duty cycle: in pulsed emission 10% – 20% – 30% – 40% – 50% – 100%.

Technical characteristics of the device :

• supply voltage: 100-240 V, 50-60 Hz.
• dimensions (width x height x depth): 27 x 10 x 27.5 cm
• weight: 3,650 kg.
• classification: I type BF – IEC 601-1.

classification: I type BF – IEC 601-1.

Comes with the following accessories (standard equipment):

• 100.689 – Power cable (1)
• 340.670 – Electrode cable bipolar (2)
• 340.468 – Rubber electrode – 6 x 8 cm set of 2 (2)
• 100.658 – Chamex case – 6 x 8 cm, set of 4 (1)
• 108.935 – Elastic velcro tape – 5 x 60 cm (2)
• 115,684 – Scale of analog indications (VAS-score) (1)
• 341.088 – contact gel 500 ml
• 330.803 – Cable tester, F/F – 2 mm (1)

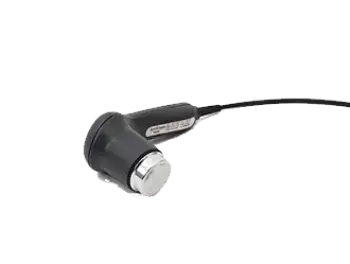

• 320.114 – Ultrasound Head 1&3 MHz 4 cm2
• 376.126 – Combi 200 Treatment and Handling CD-ROM (1)
• 376.134 – Quick Start treatment and handling guide

It comes with a dual frequency (1 & 3 MHz) ultrasonic head.







Usually ships in: 1 to 3 days
